Cascade Audio Engineering offers a wide variety of damping products ideal for sheet metal, plastic, fiberglass and wood. They can be used to eliminate vibration and the associated noise in marine applications. How do these products work? They operate as "visco-elastic" dampers by converting vibration energy into low level heat. As an enhancement product to marine audio systems, they can yield stunning results.

Vibration damping materials allow your audio system to play with much more detail and clarity. Resonating panels can be tamed, increasing the solid feel of the craft.

Our VB-1X vibration damping compound may also be applied to the inside of automotive loudspeaker enclosures whether fiberglass, plastic or wood to increase overall output by 1 to 1.5db.

Please feel free to contact our technical support department should you have any questions or comments regarding the installation or application of these products.


VB-1X
Liquid Vibration Damping Compound

VB-1X is an air curing, liquid vibration damping compound. Its combination of silica-mica, ceramics and an advanced chemical binder greatly reduces structural resonance by converting vibration into “viscous” friction or low level heat. VB-1X will also increase speaker output by .5 to 1 db when applied onto the inside of a speaker enclosure.

VB-1X


VB-2
.040" Vinyl Vibration Damping Material

VB-2 is a thin, moldable, odorless and lightweight mineral filled vinyl-copolymer formulated to handle the demanding extremes of aircraft vibration and noise control. It has twice the damping and less than half the weight of asphalt damping materials and the ability to handle continuous temperatures to 250°F.

VB-2


VB-2HD
.070" Vinyl Vibration Damping Material

VB-2HD is a thick, moldable, odorless and lightweight mineral filled vinyl-copolymer formulated to handle the demanding extremes of aircraft vibration and noise control. VB-2HD is extremely moldable and will stretch up to 70% while withstanding temperatures in excess of 250°F.

VB-2HD

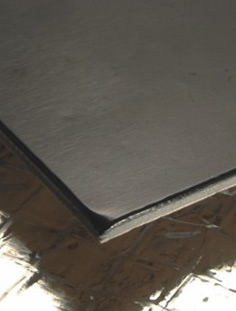

V-MAX
CLD Vibration Damping Sheet

V-MAX vibration damping sheets are designed to eliminate vibration through sheer force. V-MAX is a lightweight material that consists of a thin layer of butylene rubber that is bonded to a 4 mil layer of black anodized aluminum.

V-Max


SG-1

The SG-1 spray application tool is a 1 quart, internal mix, siphon feed spray gun designed to deliver high solids vibration damping and thermal control coatings. The SG-1 features an aluminum 1quart cup and 0.5” interior diameter draw tube to ensure maximum material flow.

SG-1

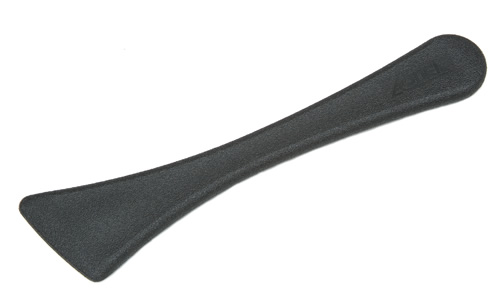

V-MAXAPP

The V-MAXAPP tool makes installing the V-MAX vibration damping sheet easier than ever. The V-MAXAPP tool is constructed of soft plastic and has been designed to ensure a good bond between the V-MAX material and the vibrating surface.

VMAXAPP
