SG-1
Spray Application Tool

The SG-1 spray application tool is a 1 quart, internal mix, siphon feed spray gun designed to deliver high solids vibration damping and thermal control coatings. The SG-1 features an aluminum 1quart cup and 0.5” interior diameter draw tube to ensure maximum material flow. Additional features include delivery rate adjustment, a press forged brass handle and 0.250” nozzle opening. The spray pattern is conical with heavy particle spray. The result is product where you need it with minimal overspray.

PART: SG-1
Body: Press forged brass and aluminum
Tank: 1 quart capacity

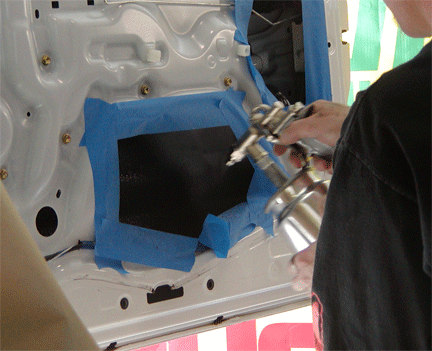

The SG-1 spray gun is used to treat large surface areas quickly with VB-1X, a vibration damping compound.

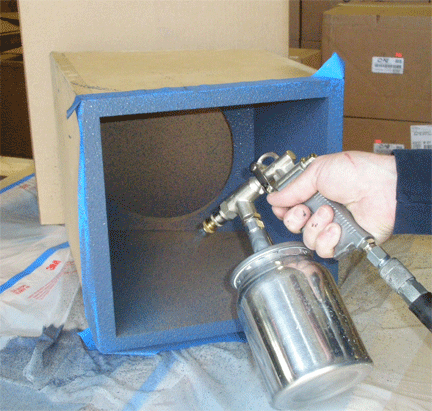

The SG-1 can be used to treat speaker enclosures with VB-1X to seal the enclosure and increase output 1 to 1.5 db.
