Use dedicated floor barrier materials to block road noise.

Low frequency road noise is the largest contributor to the overall noise floor within the passenger compartment. Specialized "floating" barriers are designed to block and reflect high energy soundwaves across a wide frequency range.

Long gone are the days of using multiple layers of heavy vibration damping sheets.

CAE offers a number of specialized barrier materials to help you reduce the time, weight and cost of making your vehicle as quiet as possible.

Please feel free to contact us with any questions you may have regarding the installation or application of barrier materials.

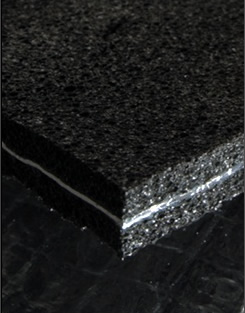

VB-3
Formable Floor Barrier Material

VB-3 is designed to be used over highly irregular areas of the floorpan such as the transmission tunnel and over the wheel arches. VB-3 consists of two layers of 1/8" neoprene foam that sandwich a lead core. One lightweight layer of VB-3 is equivalent to 4 or 6 layers of a heavy vibration damping sheet.

VB-3


VB-4
Flexible Floor Barrier

VB-4 is a composite material with a flexible, loaded vinyl mass barrier, and a foam decoupling layer which reduces road noise by impeding the passage of soundwaves.

VB-4


VB-4.5
NEW PRODUCT
Lightweight, flexible Floor Barrier

VB-4.5 is a lightweight, composite material with a flexible, loaded vinyl mass barrier, and a foam decoupling layer which reduces road noise by impeding the passage of soundwaves.

VB-4


SB-DWB-20R
Open Cell Foam w/ Vinyl Barrier
90ft² ROLL ONLY

SB-DWB-20R is a decoupled barrier product featuring an open cell foam bonded to a dense, 1lb ft² vinyl barrier.

This effective barrier is available in 90ft² rolls only.

VB-4


SB-DFB-20R
Closed Cell Foam w/ Vinyl Barrier
90ft² ROLL ONLY

SB-DFB-20R is a decoupled barrier product featuring a closed cell foam bonded to a dense, 1lb ft² vinyl barrier.

This effective barrier is available in 90ft² rolls only.

VB-4


VB-TSM
Thermo-Acoustic Engine / Generator Box Liner

VB-TSM is the perfect product for severe noise control problems. It is especially effective for RV and marine engine compartments and generator housings. VB-TSM is a unique, high performance composite material incorporating two layers of acoustical foam, a loaded vinyl barrier and an aluminized mylar thermally reflective skin.

VB-TSM
