Our SB-AD-56 acoustical doors are tremendous performers for a fraction of the costs compared to competitive brands. We also specialize in custom doors for virtually any application.

Interior Soundproof Door

- Low cost, high performance
- STC Ratings Up To 56
- Products Tested Per ASTM E-90
- Custom manufactured sound blocking door to any size specifications
- Appx. 300 pound door assembly
- 2 3/4" 6 Layer door assembly
- Comes pre-hung and assembled
- Adjustable neoprene jambs and seals
- Ready to stain to match your decor
- Best performance wood finished door assembly available
- Automatic mechanical mortised door seal
- Heavy duty hinges (4)

Custom SB-AD-56 acoustical double doors finished in Mahogany.


STC Ratings: SB-AD-56 soundproof doors are available with ratings up to STC-56, and acoustical windows up to STC-56.

Testing: SB-AD-56 Door products are tested in accordance with the most recent ASTM E90 standards at accredited Acoustical Laboratories.

Frame Configuration: In addition to our standard frame designs, we can engineer special frame profiles to complement wall construction and architectural style.

Services: CAE offers various installation services and will provide the necessary shop drawings, certification of test results and assistance with compliance for all industry standards.

Guarantee: SB-AD-56 Door products are guaranteed to be free of defects in workmanship and quality for a period of two years.

Configuration: Doors are available in a flush design or with vision elites and as single or pairs of hinged doors.

Sizes: Select from standard, or custom pairs as large as 6' w X 8' h.

Hardware: Door, frame, trim, handle, hinges, perimeter sound seals and door bottom are supplied as part of the tested assembly. Mortise locks available.

Finishes: Oak ready to stain. Optional maple, cherry, birch.

Hardware: Nickel or brass finishes

Required Installation kit Includes:
2 Packs Shims
4 Heavy Duty Jamb Screws
36 lf. Backer Rod
1 Tube Acoustical Sealant

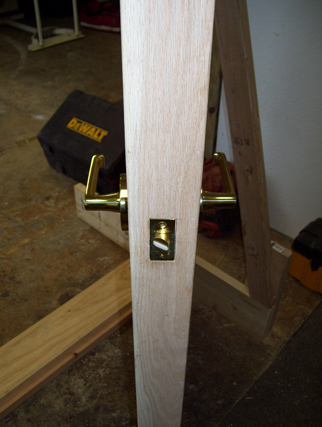

2 3/4" Door Thickness (4) Heavy Duty Hinges Exposed jamb kit with wood caps

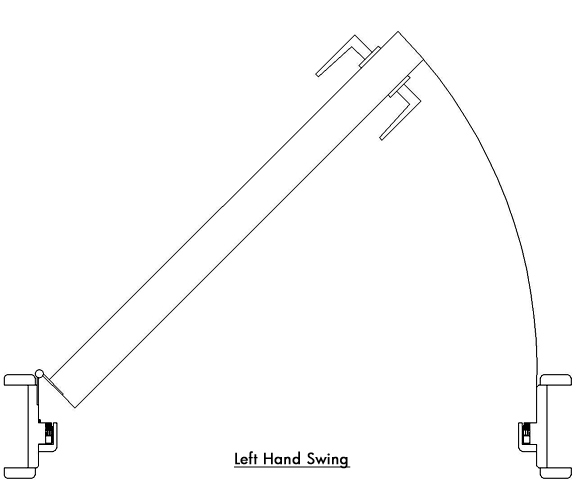

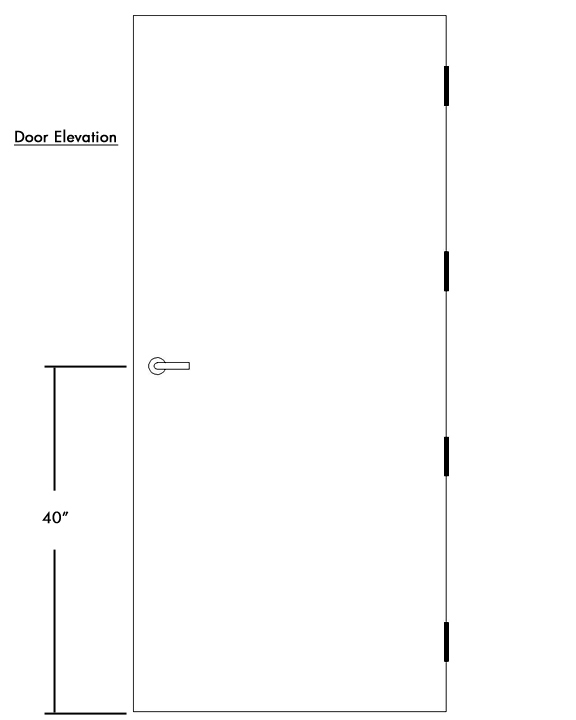

Door Elevation Horizontal Section Left Hand Swing

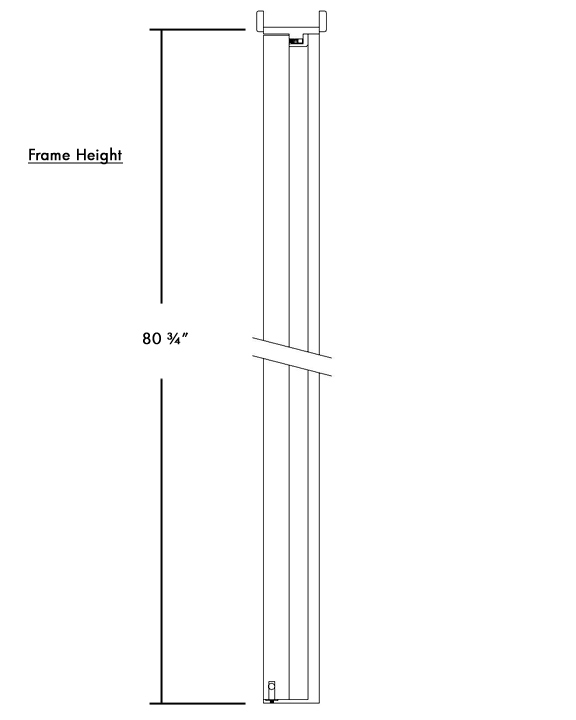

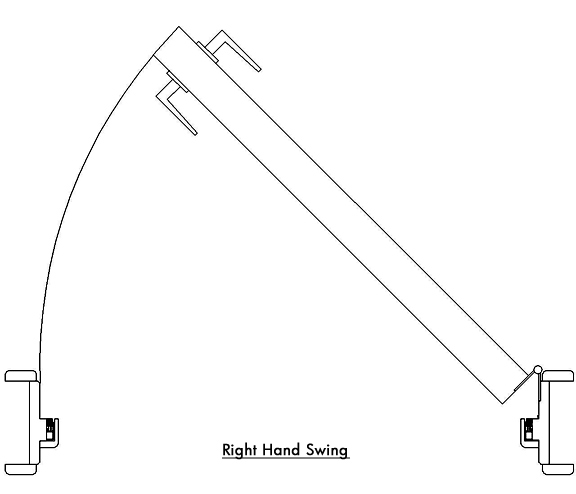

Rough Opening Right Hand Swing Frame Height
